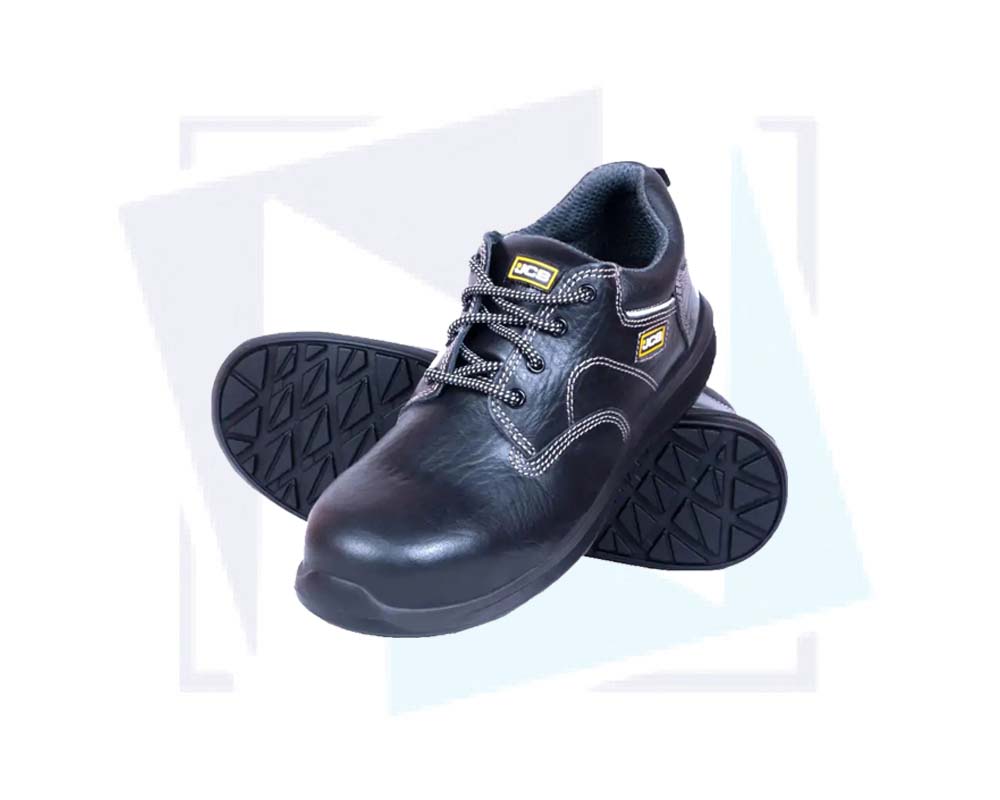

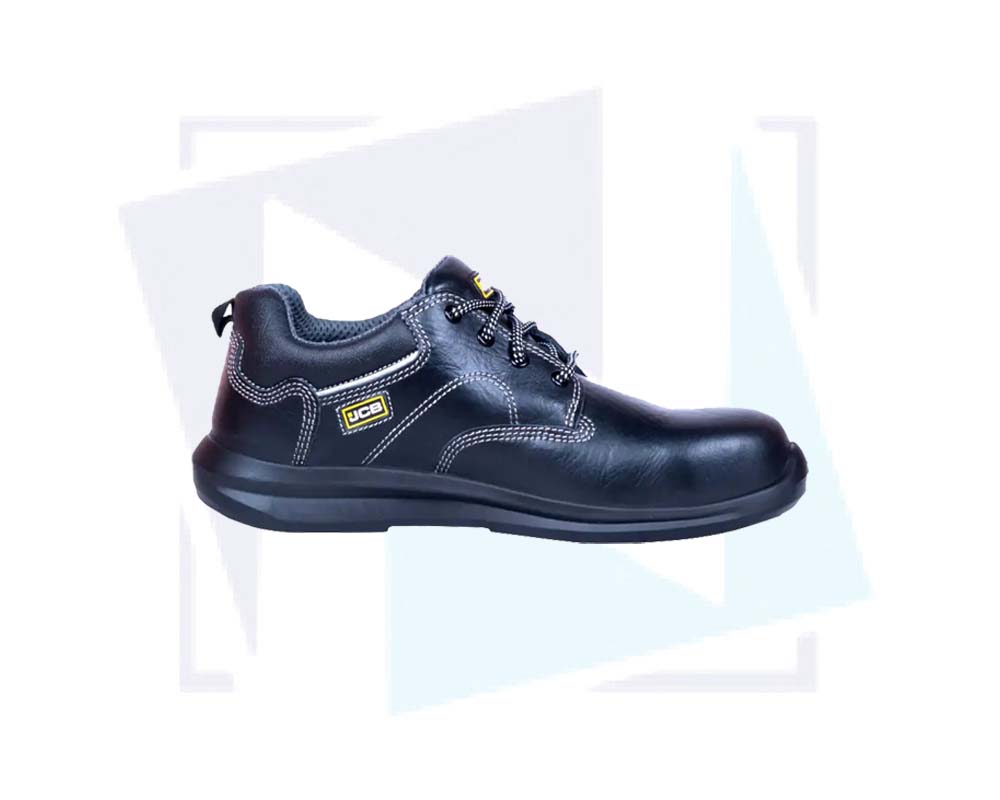

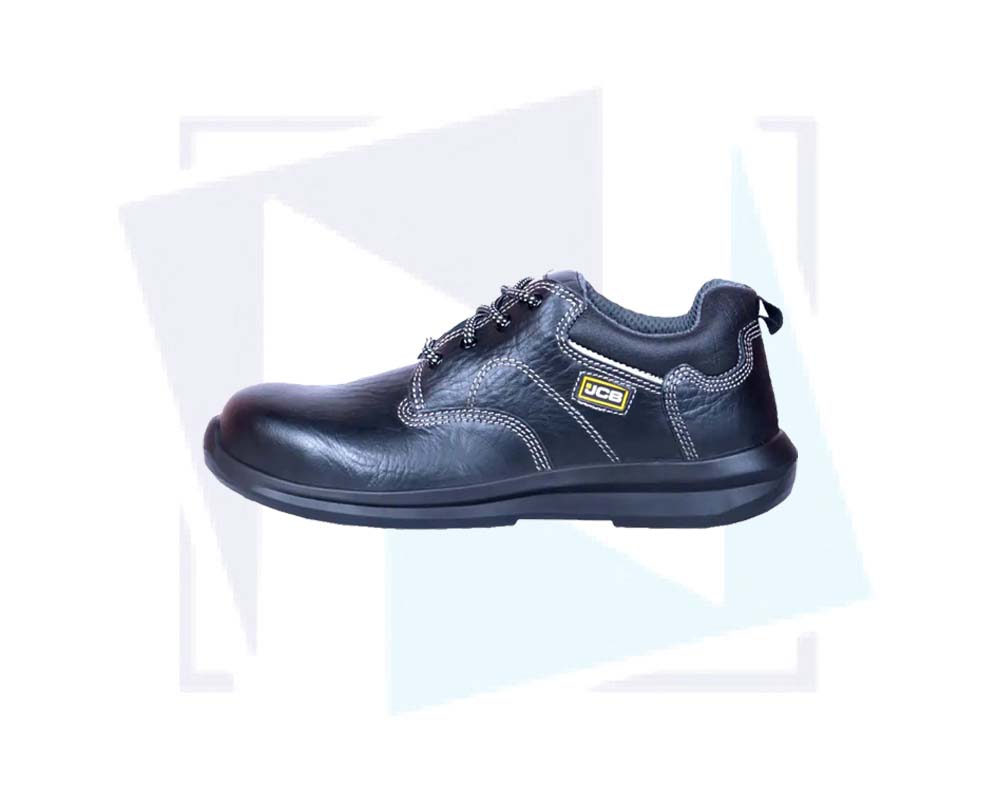

Drone
Code: JCB07
Low Ankle Lace Up Shoe
- Black Buff Textured Grain Leather.
- Imported 200J, EN12568 Steel Toe Cap.
- Quick Sweat Absorbing Mesh Lining.
- Padded Collar and Padded Bellow Tongue.
- Heat Resistant – 150°C.
- Oil & Chemical Resistant Antistatic Sole.
- Anti-Slip Sole.
- Direct Injected Single Density PU Sole.
- EN ISO 20345 & IS 15298 (II). ISI Marked.
- Light weight and comfortable.
Drone is both youthful and stylish combined with first-class wearer comfort and highest slip resistance, thanks to its lightweight design, climate-optimized high-tech materials, and ergonomically designed outsole. Drone the ideal companion for the working day and beyond.
Industries: General, Engineering, Automobile, Construction
Environments: Dry environment, Extreme slippery surfaces, Uneven o surfaces, upto 130 c
Maintenance instructions: To extend the life of your shoes, we recommend to clean them regularly and to protect them with adequate products. Do not dry your shoes on a radiator/Hair Dryer nor nearby a heat source.
|
Description |
Specification |
|
Brand & ARTICLE |
JCB DRONE |
|
Operative Standard |
Meets As per S 15298 (Part 2):2016 ISO 20345: 2011 |
|
Description |
Light Weight Black 4 Eyelet, low ankle Single Density Slip Resistant Direct Injected (on DESMA) PU Sole, Safety Footwear. Nail less. As per design A. |
|
SIZES |
UK (Range 5-12) |
|
Height & size of shoe |
Less than 113 mm for size 8 (+/- 5 mm) |
|
Color |
BLACK |
|
Marking |
As per IS 15298 (Part 2): 2011 ISI Marked |
|
Electrical Properties |
Antistatic Sole Resistance between 100 K ohm - 1000 mega ohms. |
|
Upper leather |
Apollo Buff Grain Leather |
|
Upper l thickness |
As per S 15298 (Part 2):2016 ISO 20345: 2011 |
|
Vamp lining |
Non Woven Polyester 250 GSM |
|
Tongue |
LEATHER Padded with PU Foam |
|
Collar |
Padded with PU Foam. Re?ecti ve strip below Collar. |
|
Lining other than vamp |
GREY MESH LINING |
|
Socks |
Full EVA padded. Antistatic. BEAR JCB Fabric LABEL |
|
Insole |
Non Woven more than 2 mm thick |
|
Out Sole |
PU Single density Black with 20J heel |
|
Sole fixation |
Direct injecti on process on DESMA Machines |
|
Other |
Nail less Strobel construction |
|
HEEL STIFFNER |
Molded sti?ener for additional support. |
|
Tear Resistance Upper |
As per 5.4.3 of IS 15298 (Part 2):2016 |
|
Flexing Resistance Upper |
As per 5.4.5 of IS 15298 (Part 2):2016 |
|
pH Value Upper Leather |
As per 5.4.7 of IS 15298 (Part 2):2016 |
|
Chromium VI Content |
As per 5.4.9 of IS 15298 (Part 2):2016 |
|
Sole Cleated Area |
As per 5.8.1.2 of IS 15298 (Part 2):2016 |
|
Cleat Height |
As per 5.8.1.3 of IS 15298 (Part 2):2016 |
|
Sole Thickness cleated outsole |
As per 5.8.1.1 of IS 15298 (Part 2):2016 |
|
Sole Abrasion Resistance |
As per 5.8.3 of IS 15298 (Part 2):2016 |
|
Sole Flexing Resistance 0 |
As per 5.8.4 of IS 15298 (Part 2):2016 |
|
Resistance Hot Contact 120 C |
As per 6.4.1 of IS 15298 (Part 2):2016 |
|
Resistance to Fuel Oil |
As per 6.4.2 of IS 15298 (Part 2):2016 |
|
Upper Outsole Bond Strength |
As per 5.3.1.2 of IS 15298 (Part 2);2016 |
|
Antistatic |
As per 6.2.2.2 of IS 15298 (Part 2):2016 |
|
|
Other Option ESD & ESR |
|
Toecap |
Steel 200 joules. Also protect against compression injury up to 15 KN. Conforms to EN 12568 (Bare Toe Cap Testing) |
|
Padding under steel toe |
Polymer Strip for comfort |
|
Thread |
NYLON/POLYMER |
|
LACE |
BLACK Round Nylon with hardened ti ps |
|
MARKING |
As per IS 15298 Part II |
|
JCB Branding |
Two colored Polymer Label on Upper & Fabric label on socks |
|
Branding on Socks |
JCB Fabric woven label on heel area of the socks |
|
MARKING ON THE SOLE |
DATE & SIZE CLOCK |
|
SUITABLE FOR |
For General Safety Purpose, Construction Industry. |
